Designing Feature Walls for Commercial, Hospitality, and Multifamily Projects

A commercial feature-wall specification must resolve more than finish selection. The drawings and specifications need to establish the substrate and wall assembly, surface geometry, movement and joints, fire-documentation scope, lighting conditions, access requirements, and coordination with adjacent work.

These considerations become particularly important in lobbies, hotel interiors, restaurant environments, multifamily amenity spaces, and other areas where the wall finish is visible at close range and interfaces with multiple trades. Flexible Natural Stone by Angkop Corp can form part of that design approach when the product profile, prepared substrate, installation method, and project conditions are reviewed together.

Define the Surface and Assembly

Flexible Natural Stone is a thin-profile architectural surface applied over a prepared substrate. Product profiles are approximately 2–5 mm depending on the selected product. The surface does not replace framing, sheathing, substrate design, structural requirements, or any required fire-rated wall, floor, or ceiling assembly.

Flexible Natural Stone is the architectural surface; MCM describes the material technology beneath it.

For a commercial or multifamily project, the finish should therefore be specified as one component within a coordinated wall assembly. The specification should identify:

• The intended product series, profile, colour, and surface texture.
• The substrate type and its condition before installation.
• The adhesive or installation system identified in current technical documentation.
• Edge, corner, termination, and movement conditions.
• Interfaces with doors, glazing, millwork, lighting, signage, equipment, and service access.
• Applicable fire documentation and its limitations.

The Installation Guide should be reviewed alongside the substrate manufacturer’s requirements and the project’s applicable code provisions.

Commercial Lobbies: Scale, Verticality, and Visual Rhythm

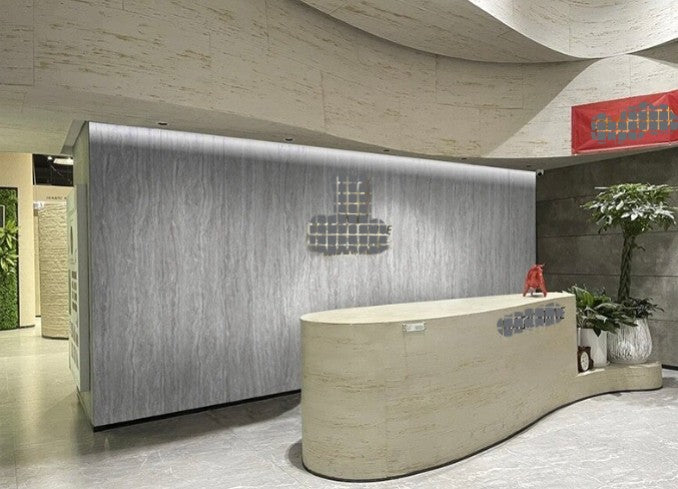

In commercial lobbies, a feature wall often occupies a large visual field behind reception, along a primary circulation route, or beside elevator and access-control zones. The design intent should be resolved through elevations before installation begins.

Panel orientation and layout can influence the perceived rhythm of the wall. Vertical alignment may reinforce the height of a lobby, while horizontal courses can establish a stronger datum across a long wall. The selected layout should be coordinated with:

• Door heads, sidelights, elevator frames, and reception millwork.
• Lighting locations and sightlines.
• Signage, branding, and digital displays.
• Panel joints, terminations, and changes in direction.
• The scale and texture of the selected finish when viewed from the principal approach.

Substrate stability is a design and construction requirement, not simply a finish preference. The wall must be sufficiently sound and stable for the proposed installation system, with movement, surface condition, and any required remediation addressed before bonding. In high-traffic areas, designers should also review the location of furniture, luggage paths, cleaning equipment, and other sources of routine contact when selecting the feature-wall location and detailing its edges.

The finish should not be treated as a substitute for impact design, protection, or a suitable wall assembly. Where the exposure is unusual, project-specific suitability should be confirmed through current product documentation and specification support.

Hospitality Interiors: Review the Finish Under Project Lighting

Hospitality feature walls are frequently viewed under several lighting conditions: general ambient light, wall-washing, grazing light, decorative pendants, concealed linear lighting, and daylight from adjacent glazing. Surface texture and tonal variation can appear materially different depending on the direction, intensity, distance, and colour temperature of the light source.

Lighting direction, intensity, and colour temperature should be evaluated with the selected finish under project conditions. A physical sample or representative mock-up should be reviewed under the intended lighting before the finish is finalized.

Particular attention should be given to:

• Grazing light placed close to a textured surface.
• Shadowing at joints, reveals, returns, and terminations.
• Variation between sample photography and installed appearance.
• Reflections from adjacent polished, glazed, or metallic materials.
• The relationship between the feature wall and the surrounding ceiling, floor, and millwork finishes.

A lighting mock-up can also identify whether a joint, corner, or transition becomes more visually prominent than intended. This is especially useful where the feature wall is used behind a bar, host station, restaurant seating area, hotel reception, or branded display.

The Applications and Inspiration page can support early design review, but project decisions should be based on the selected sample, current technical information, and the actual lighting environment.

Multifamily Amenity Spaces: Exposure and Assembly Performance

Multifamily amenity spaces may include lounges, clubrooms, fitness areas, coworking rooms, corridors, and shared entertainment spaces. Each has a different exposure profile and coordination requirement.

Durability and cleanability should be evaluated in relation to the specific location, expected contact, cleaning regime, furniture arrangement, and selected surface profile. The appropriate assessment may differ between a protected lounge wall, a circulation-zone return, and a wall beside exercise equipment or movable furniture.

Acoustic performance should not be inferred from surface texture alone. It depends on the complete wall assembly, including the substrate, cavities, adjacent finishes, and any acoustic treatment. Where reverberation control, speech intelligibility, or sound transmission is part of the project brief, the design team should establish the acoustic objective and obtain project-specific data for the complete assembly.

The feature surface should not be specified as an acoustic treatment unless the required performance has been demonstrated for the proposed assembly.

Detail Corners, Transitions, and Edges

Feature-wall corners should be resolved in elevations, sections, and enlarged details. A finish that appears continuous in a rendering may require a different construction approach at an outside corner, inside corner, opening, or change of material.

Mitered corners may be appropriate in some locations, but wrapped returns or separate corner pieces may be preferable depending on the selected profile, texture, orientation, and installation conditions. The appropriate treatment should be confirmed with the current product and installation documentation.

Coordinate the following conditions before issuing the construction set:

• Outside corners and inside corners.
• Wall-to-ceiling and wall-to-floor terminations.
• Returns at doors, glazing, millwork, and niches.
• Recessed trims, reveals, and changes in finish.
• Movement or transition gaps between dissimilar materials.
• End conditions where the surface terminates in open view.

Trim and reveal design should support the geometry of the wall without creating an uncoordinated interruption. The selected detail should be drawn rather than left to field interpretation.

Service Access and Trade Coordination

Feature walls often occur near access panels, AV equipment, electrical devices, service closets, signage, and concealed cabling. These interfaces must be coordinated before the finish is installed.

Where access panels, AV cabling, or service closets occur behind a feature wall, access, movement, and termination conditions must be coordinated. The finish is not suitable for direct application over moving or operable elements without confirmation from current installation documentation.

The coordination drawings should identify:

• Access-panel locations and opening dimensions.
• Whether the finish terminates at, returns into, or is independently framed around an opening.
• Required movement allowance at the perimeter and at material transitions.
• Electrical boxes, data outlets, speakers, displays, and other penetrations.
• Service clearances and removal paths for equipment.
• Interfaces with doors, frames, millwork, and removable panels.

A continuous visual field should not take priority over serviceability or the proper operation of an access element. Where the finish must visually align across a panel or door, the design team should confirm that the proposed construction is compatible with the movement and operation of that element.

Fire Documentation: Surface Result Versus Assembly Classification

Fire documentation must be reviewed in the context of the complete project assembly. Flexible Natural Stone is a surface finish and does not independently constitute a fire-rated wall, floor, ceiling, or partition assembly.

For the documented result, a 2.5 mm Modified Clay Material specimen was tested in accordance with ASTM E84-24 and reported FSI 0 / SDI 5 in the 2025 SGS report. This is a tested-specimen result. It is not a universal certification for every product profile, installation condition, substrate, adhesive, or wall assembly, and it does not classify the complete assembly.

The applicable report and project conditions should be reviewed for:

• The tested specimen and thickness.
• The substrate and installation configuration represented by the report.
• The location and occupancy requirements.
• The underlying rated assembly, where required.
• Penetrations, firestopping, and interfaces with adjacent construction.
• Requirements of the authority having jurisdiction.

Refer to the ASTM E84 documentation and request project-specific support where the intended application differs from the documented specimen or configuration.

Practical Specification Checklist

Typology and layout

• Identify the feature-wall location and occupancy context.
• Establish the principal viewing distances and sightlines.
• Coordinate panel orientation, visual rhythm, and major datums.
• Coordinate the layout with signage, millwork, doors, glazing, and lighting.

Substrate and assembly

• Identify the proposed substrate and confirm that it is suitable for the selected installation system.
• Verify that the substrate is sound, stable, and appropriately prepared.
• Review substrate movement, surface condition, and required remediation.
• Confirm that the finish does not replace any required structural or rated assembly.

Geometry and corners

• Draw outside corners, inside corners, returns, openings, and terminations.
• Confirm whether mitered corners, wrapped returns, or separate returns are appropriate.
• Coordinate reveals, trims, material transitions, and movement conditions.
• Include enlarged details where the finish meets another assembly.

Fire documentation

• Review the applicable ASTM E84 report and tested specimen.
• Record the documented result as specimen-specific, not as a universal product or assembly classification.
• Confirm the underlying wall assembly and any required fire-resistance rating.
• Coordinate penetrations and firestopping with the project fire strategy and AHJ requirements.

Lighting and finish review

• Review the selected finish under representative project lighting.
• Evaluate grazing, wall-washing, ambient, and daylight conditions where applicable.
• Confirm the appearance of texture, joints, returns, and tonal variation.
• Approve a physical sample or representative mock-up before final selection.

Access and coordination

• Locate access panels, AV equipment, electrical devices, cabling, and service closets.
• Confirm access, movement, and termination conditions at operable elements.
• Coordinate penetrations, backing, clearances, and removal paths.
• Review interfaces with doors, glazing, millwork, signage, and equipment.

Documentation and mock-up

• Include product identification, profile, colour, and finish in the finish schedule.
• Reference current installation and technical documentation.
• Coordinate elevations, sections, details, lighting plans, and reflected ceiling plans.
• Obtain submittals and review a project-representative mock-up where the feature wall is prominent or technically complex.

A feature wall is ready for issue when its visible finish and underlying coordination have both been resolved. Establish the wall assembly, substrate conditions, geometry, fire-documentation scope, lighting behaviour, access strategy, and transition details before construction. For project-specific information, use the Angkop Resource Hub, request technical documentation, request samples, or contact specification support.
