A surface system and structural masonry are different components with different responsibilities. Confusing them in a specification creates problems in either direction: expecting a finish to carry load, or over-building the supporting assembly to receive a finish that does not require structural masonry construction.
For architects, specifiers, structural consultants, facade consultants, and contractors, the distinction should be established in the drawings, wall sections, schedules, and specifications. Structural masonry may form part of the load-bearing or stabilizing system. A surface system is generally the visible finish layer installed over a prepared substrate. The two can be coordinated within one wall assembly, but they should not be assigned the same function.
What structural masonry does
Structural masonry can carry load, form the wall, and contribute mass and stability to a building assembly. Depending on the design, it may consist of concrete masonry units, reinforced masonry, stone construction, or another engineered masonry system. Its performance is governed by the structural design, support conditions, reinforcement, anchorage, movement provisions, and applicable fire-resistance requirements.
Structural masonry also has its own detailing logic. Control or movement joints, bearing conditions, openings, interfaces with framing, and connections to adjacent construction must be designed by the responsible consultants. Where masonry is part of a rated or load-bearing assembly, those requirements remain in force regardless of the finish subsequently applied to the wall.
Masonry remains a valid specification choice where its structural, enclosure, durability, fire-resistance, or architectural functions are required. A surface system does not displace those responsibilities.
What a surface system does
A surface system provides the finish layer over a prepared substrate. It contributes the visible material expression and must be coordinated with the substrate, attachment or bonding method, joints, terminations, openings, and adjacent finishes.
Flexible Natural Stone by Angkop Corp is a thin-profile architectural surface. Flexible Natural Stone is approximately 2–5 mm thick depending on the product profile. It does not replace framing, sheathing, substrate design, structural requirements, or a required rated assembly.
Flexible Natural Stone is the architectural surface; MCM describes the material technology beneath it.
The surface therefore depends on the supporting construction beneath it. Before specification, the project team should identify the substrate type, condition, capacity, stability, and compatibility with the proposed installation method. The substrate must be assessed as part of the assembly rather than treated as an incidental background surface.
Where the boundary sits in practice
The boundary between structural masonry and a surface system is not a single line on a material schedule. It is a series of coordination points across the wall assembly.
Dead load and supporting assembly
The structural consultant should account for the finish as a superimposed load on the supporting assembly. The surface system does not become structural because it is bonded to concrete, masonry, sheathing, or another substrate.
The supporting wall, backup construction, framing, and connections must be designed for the project conditions. Where existing construction is being over-clad, the existing substrate should be assessed for condition, capacity, movement, and compatibility before the finish is specified.
Substrate design and capacity
The surface specification should identify the required substrate category and refer to current installation documentation for preparation and compatibility requirements. A substrate that is unsound, excessively moving, contaminated, or otherwise unsuitable can compromise the finish regardless of the material selected.
Responsibility should also be assigned. The masonry, framing, or general construction trade may be responsible for delivering the substrate; the surface installer may be responsible for confirming readiness before installation. Leaving that interface undefined creates a scope gap.
Review the current Installation Guide during design development and before installation. Project-specific conditions may require additional review by the architect, contractor, consultant, or manufacturer.
Movement and jointing continuity
The surface system must accommodate movement in the substrate and at transitions. Masonry control or expansion joints, structural movement joints, changes in material, corners, openings, and perimeter conditions should be shown in the details.
A finish should not be used to conceal or rigidly bridge a working joint without a documented detail. Joint continuity, sealant requirements, backing materials, and termination conditions should be coordinated with the movement characteristics of the underlying assembly.
No universal bend radius should be assumed. Where curved geometry, wrapped columns, arches, or other non-planar conditions are proposed, the product profile and project-specific radius should be confirmed before detailing and procurement.
Fire performance documentation and scope
Fire documentation must be read according to what was tested. A 2.5 mm Modified Clay Material specimen was tested in accordance with ASTM E84-24 and reported an FSI 0 / SDI 5 result in the 2025 SGS report.
That result applies to the specific tested specimen and test configuration. It is not a universal product claim, an ASTM certification, or a classification of a wall, floor, ceiling, or facade assembly. A surface-burning result does not establish the fire-resistance rating of the underlying assembly.
Where a project requires a fire-resistance-rated assembly, the framing, sheathing, insulation, membranes, penetrations, and other components must be evaluated according to the applicable code path and required documentation. The surface finish should be reviewed for compatibility with that assembly. Consult the available ASTM E84 documentation and the authority having jurisdiction where required.
Geometry and radius confirmation

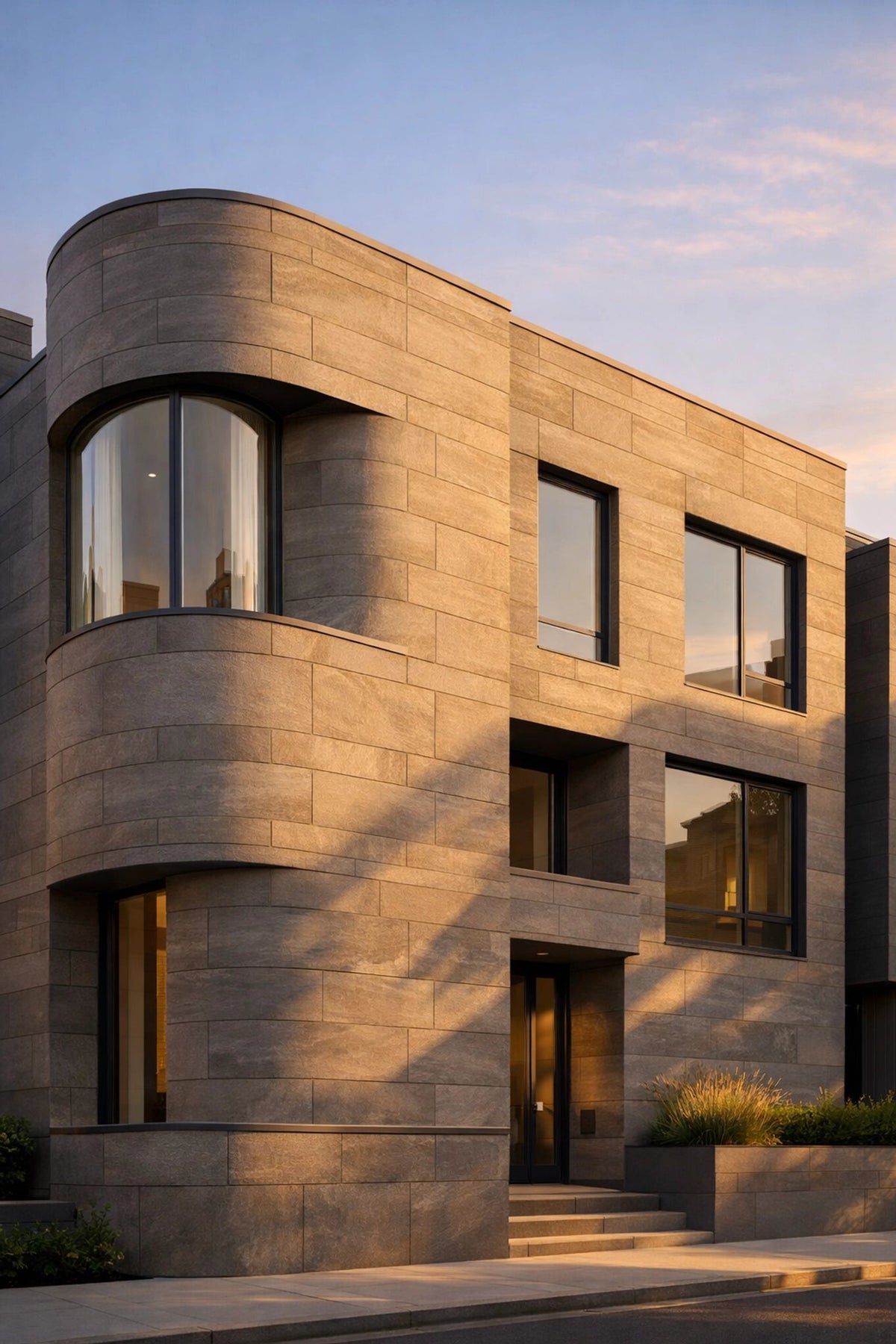

Flat and curved applications are not interchangeable from a specification standpoint. A curved condition should identify the intended geometry, transition points, panel orientation, joint treatment, and product profile. The selected product should then be reviewed for its documented forming or installation limitations.
Radius confirmation is particularly important at tight corners, curved returns, columns, soffits, and transitions between planar and curved surfaces. If the project geometry is not covered by current technical information, obtain written project-specific guidance before proceeding.
Exterior weather management
For exterior applications, the surface finish is only one part of the wall. Water-shedding surfaces, flashings, drainage, air and moisture control layers, penetrations, window interfaces, parapets, bases, and terminations must be designed as part of the complete enclosure.
Exterior suitability should not be inferred solely from an interior material sample or a surface-burning result. Review the proposed exposure, substrate, installation method, sealants, transitions, and current product documentation for the specific application.
Why the distinction matters by discipline
For the structural engineer: treat the surface as a superimposed finish load and maintain the design responsibilities of the supporting wall, framing, masonry, connections, and movement system.
For the architect: define the complete assembly, including substrate, control layers where applicable, joints, openings, edges, transitions, and the limits of the selected finish.
For the contractor: confirm substrate readiness, sequencing, access, coordination with adjacent trades, and installation requirements before materials are delivered or bonded.
For the code consultant: distinguish surface-burning documentation from fire-resistance, flame-spread requirements for a specific finish location, and performance of the complete wall assembly.
For the facade or enclosure consultant: coordinate the surface with drainage, weather management, movement, penetrations, and exterior termination details where the application is exposed.
Common specification errors
Several recurring errors arise when the boundary between surface and structure is left implicit:
- Treating an ASTM E84 surface-burning result as a rating for the entire wall assembly.
- Specifying a finish over an existing substrate that has not been assessed for condition, movement, or capacity.
- Assuming that every product profile can follow the same radius.
- Omitting movement joints or failing to carry existing joints through the finish design.
- Leaving corners, openings, bases, parapets, and material transitions without termination details.
- Assigning substrate preparation to the installer without defining the condition to be provided by the preceding trade.
- Treating an interior installation detail as suitable for an exterior exposure without reviewing weather management.
- Specifying the material without identifying the product profile, substrate, documentation, and mock-up requirements.
Practical Specification Checklist
Assembly responsibilities
- Identify the structural masonry, framing, sheathing, and other supporting components.
- Identify Flexible Natural Stone as a finish layer, not a structural component.
- Define responsibility for substrate preparation and acceptance.
- Coordinate the finish with the complete wall or interior assembly.
Load and substrate
- Account for the finish as a superimposed load where required.
- Identify the substrate type and project-specific preparation requirements.
- Confirm that the substrate is suitable, stable, and capable of receiving the finish.
- Review existing substrates before over-cladding or renovation work.
Movement and joints
- Locate structural, masonry, control, expansion, and perimeter joints.
- Coordinate finish joints with substrate movement and material transitions.
- Detail corners, openings, terminations, and changes in plane.
- Do not assume that the finish can bridge a working joint without a documented detail.
Fire documentation
- Identify whether the requirement concerns surface burning or a rated assembly.
- Review the documented specimen and test configuration.
- Reference the result as tested in accordance with ASTM E84-24, with FSI 0 / SDI 5 for the reported 2.5 mm specimen.
- Confirm the requirements of the applicable code, authority having jurisdiction, and project assembly.
Geometry
- Identify flat, curved, wrapped, folded, and transitional conditions.
- Confirm the selected product profile for the proposed geometry.
- Obtain product-specific radius information before finalizing curved details.
- Use a project mock-up where appearance, joints, transitions, or installation conditions require review.
Exterior conditions
- Coordinate water-shedding surfaces, flashings, drainage, and control layers.
- Review openings, penetrations, parapets, bases, and exposed terminations.
- Confirm that the proposed installation is appropriate for the project exposure.
- Do not infer exterior assembly performance from a surface-burning result alone.
Documentation and mock-up
- Include the current Installation Guide in the project review.
- Assemble current technical and fire-performance documentation for the specification package.
- Record product profile, colour, substrate, joint approach, and installation method.
- Coordinate a sample or mock-up before broad installation where the finish is visually or technically significant.
The boundary between surface and structure is a specification decision that should be drawn explicitly in the drawings and stated clearly in the specifications. Structural masonry carries the responsibilities assigned to the structural wall. Flexible Natural Stone provides a defined architectural finish over a prepared assembly. When those roles, interfaces, and documentation limits are coordinated from the outset, the project team can evaluate each component according to what it is designed to do.
