A curved wall, column, arch, or reception feature creates a clear material decision: can the selected surface follow the geometry without turning the design into a series of small pieces?
Flexible Natural Stone by Angkop Corp is intended for architectural surfaces where the finish must move across a curve while maintaining a continuous stone expression. The material is supplied as a thin panel, approximately 2–5 mm depending on the product profile. It can be reviewed for curved walls, columns, arches, returns, soffits, and other non-planar interior applications when the substrate and installation system are appropriate.
Flexible Natural Stone is the architectural surface; MCM describes the material technology beneath it.
The key is to specify the panel and the geometry together. Curvature is not a substitute for a coordinated substrate, adhesive, movement strategy, or installation sequence.
Where curved applications occur
Curved geometry appears in many commercial and residential interiors:
- Reception desks and branded welcome counters
- Rounded feature walls in lobbies and hospitality spaces
- Circular or faceted columns
- Arched openings and portal surrounds
- Curved corridor walls
- Cove walls, soffits, and bulkheads
- Built-in furniture and millwork faces
- Fireplace surrounds with curved returns
- Concave or convex feature elements
These conditions often place seams, edges, and transitions in direct view. A successful specification therefore starts with the visual direction of the panel, not only with the overall surface area.
A linear texture may be intended to run horizontally around a wall or column. A vertically oriented relief may need to continue from floor to ceiling. A stone pattern with strong variation may require dry layout before bonding so that adjacent panels do not create an unintended visual break.
Confirm what the selected panel format can do

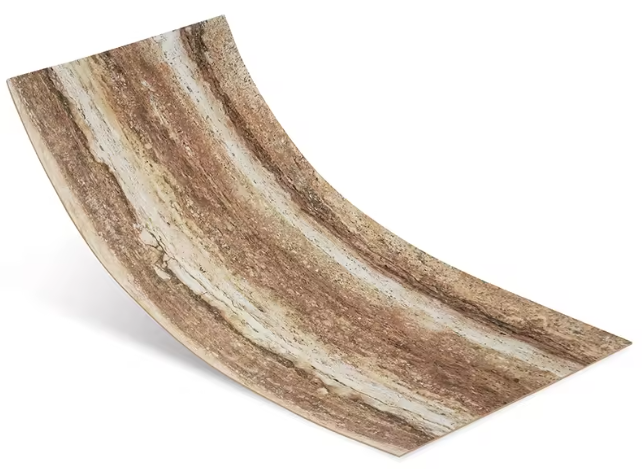

Flexible Natural Stone is not one single panel format. Curvature depends on the selected product profile and its direction of bend.
Panels 10 ft and longer curve a full 360 degrees along their length. The 3D large-format panels are also 10 ft and take a 45 degree bend. The difference is the format, not the length.
These statements describe the intended bending behavior of the respective formats. They do not establish a universal radius for every product or every project condition. The selected format and project geometry should be confirmed before procurement.
The panel’s approximately 2–5 mm profile can help it follow a prepared curved substrate without adding the depth associated with a thicker stone assembly. It does not correct an unstable, uneven, or poorly formed base. Any irregularity in the substrate may remain visible through a thin finish.
For a project with a tight transition, changing radius, compound curve, or irregular opening, prepare a scaled detail or physical mock-up. Confirm the direction of bend, the location of the closing seam, and how the surface will terminate before releasing the material order.
Plan seams and joints across the curve
The cleanest curved installations are planned before adhesive is introduced.
Begin by mapping the surface in elevation and plan. Mark the start point, end point, principal sightlines, openings, returns, and changes in curvature. Then decide whether the panel will wrap continuously or stop at a deliberate joint.
On a curved wall, a vertical seam may be less visible when placed outside the primary approach view. On a column, the closing seam may be coordinated with a corner, reveal, door frame, or other architectural line. On an arch, the panel direction and joint pattern should support the shape rather than interrupt it at the crown.
Consider the following during layout:
- Panel orientation and bend direction
- The width and location of each panel
- The closing seam on a column or circular element
- Joints at changes in radius
- Openings, outlets, access panels, and millwork interfaces
- Exposed edges and termination details
- Movement and perimeter provisions required by the assembly
- Whether the pattern should align across adjacent surfaces
Do not force a full panel around a curve if doing so creates a narrow closing strip or places a seam in a high-visibility location. A controlled joint is usually easier to coordinate than an unplanned overlap or sliver.
Dry-fit the panels and mark cuts before bonding. Use the current Installation Guide for the applicable preparation, cutting, bonding, and finishing sequence.
Wrapping columns, returns, and arches
Columns require more than a width measurement. Confirm the column circumference, height, shape, and any taper or fluting. A round column may allow a continuous wrap, while an oval, faceted, or irregular column may require a deliberate joint strategy.
Set a clear starting position. This can be a less visible face, a planned vertical reveal, or a location coordinated with adjacent construction. Check that the selected panel width can complete the wrap without producing an unwanted narrow strip.
Returns and outside corners should be detailed as part of the same layout. Confirm whether the panel will continue around the return, terminate into a trim, or meet a separate surface treatment. At an arch, review the spring points, intrados, extrados, and any transition from the curved portion to the straight wall.
For complex geometry, a mock-up should include the actual substrate profile, panel direction, adhesive system, edge treatment, and representative joint condition. This gives the design team and installer a shared reference before the full installation.
Substrate requirements for a curved surface
The panel follows the substrate. It does not create the structural curve.
The substrate must be stable, clean, dry, properly supported, and suitable for the selected adhesive and location. A curved gypsum board assembly, cementitious board, concrete surface, masonry base, or other substrate may be appropriate depending on the project. The exact assembly remains a project-specific decision.
Before installation, confirm:
- The curved surface is formed to the required design geometry
- The base is free from loose material, dust, dampness, and unstable coatings
- Board fastening and framing support are complete
- The substrate can receive the selected adhesive
- Existing movement, control, and perimeter conditions are understood
- Moisture management is addressed where the location requires it
- The surface is sufficiently even for the thin panel profile
- Heat-adjacent, wet, exterior, or overhead conditions have been reviewed
Do not use the panel to bridge a moving or uncertain base. Do not assume an existing painted surface, tile finish, metal surface, or textured ceiling is ready for bonding. Confirm compatibility with the adhesive manufacturer and test representative conditions where the substrate or coating is unusual.
Adhesive selection is not prescribed by Angkop. Specify an adhesive verified for the selected panel, substrate, and application. Follow the adhesive manufacturer’s current instructions for preparation, coverage, working time, placement, pressure, and cure.
Coordinate installation with the site sequence
Curved surfaces are sensitive to sequencing. The substrate must be complete before the panels arrive at the work face.
Coordinate the following trades and activities:
- Complete framing, sheathing, board installation, and substrate repairs.
- Confirm the curve with the architectural control lines.
- Resolve electrical boxes, access panels, backing, trims, and millwork interfaces.
- Verify the panel format, quantity, direction, and seam layout.
- Dry-plan cuts and openings on the actual surface where practical.
- Confirm adhesive availability and site conditions.
- Install from an established reference line or datum.
- Apply even pressure across the panel while it conforms to the curve.
- Protect the surface until the adhesive has reached the required cure.
- Complete edge, joint, and transition details in accordance with the approved detail.
The Installation Guide identifies the core sequence as prepare, plan, cut, bond, and finish. It also directs project teams to review the complete assembly where conditions involve moisture, heat, ceilings, exterior exposure, or uncertain support.
Review documentation for the intended application
Where a project requires surface-burning documentation, the 2025 SGS report documents a 2.5 mm Modified Clay Material specimen tested in accordance with ASTM E84-24, reporting FSI 0 and SDI 5, meeting the Class A interior wall and ceiling finish category for that tested specimen. This describes the tested specimen; the full wall assembly is reviewed separately.
Do not treat a surface test result as approval of a complete wall, ceiling, fireplace, or exterior assembly. Review the applicable panel, substrate, adhesive, clearances, penetrations, and local requirements for the project. The ASTM E84 documentation page explains the scope of the classification and provides a route to request current project documentation.
For material selection, review the interior wall system collection and compare the actual profile, texture, colour variation, and format required for the curved condition. A Flexible Stone Sample Pack can help the design team assess the surface before final selection.
Confirm before procurement
Curved work should not be ordered from area calculations alone. Confirm the panel format, bend direction, length, pattern, seam locations, returns, openings, and finishing details with the installer and design team.
For technical data, specification packages, or project-specific questions, request technical documentation or contact specification support. For material review, request samples before approving the finish.
Curved-surface specification checklist
- Confirm the curved surface, radius changes, returns, openings, and terminations.
- Select the panel format and verify its bend direction and intended curvature capability.
- Confirm the approximately 2–5 mm product profile for the selected panel.
- Coordinate panel orientation with the visual direction of the stone pattern.
- Locate seams, closing joints, movement provisions, and perimeter conditions.
- Verify that the substrate is stable, clean, dry, supported, and adhesive-compatible.
- Confirm adhesive selection and installation requirements with the adhesive manufacturer.
- Dry-plan cuts, joints, columns, arches, and complex transitions before bonding.
- Review heat, moisture, exterior, ceiling, and code conditions where applicable.
- Request current technical documentation and samples before procurement.
- Approve a representative mock-up when the geometry or detailing is complex.
